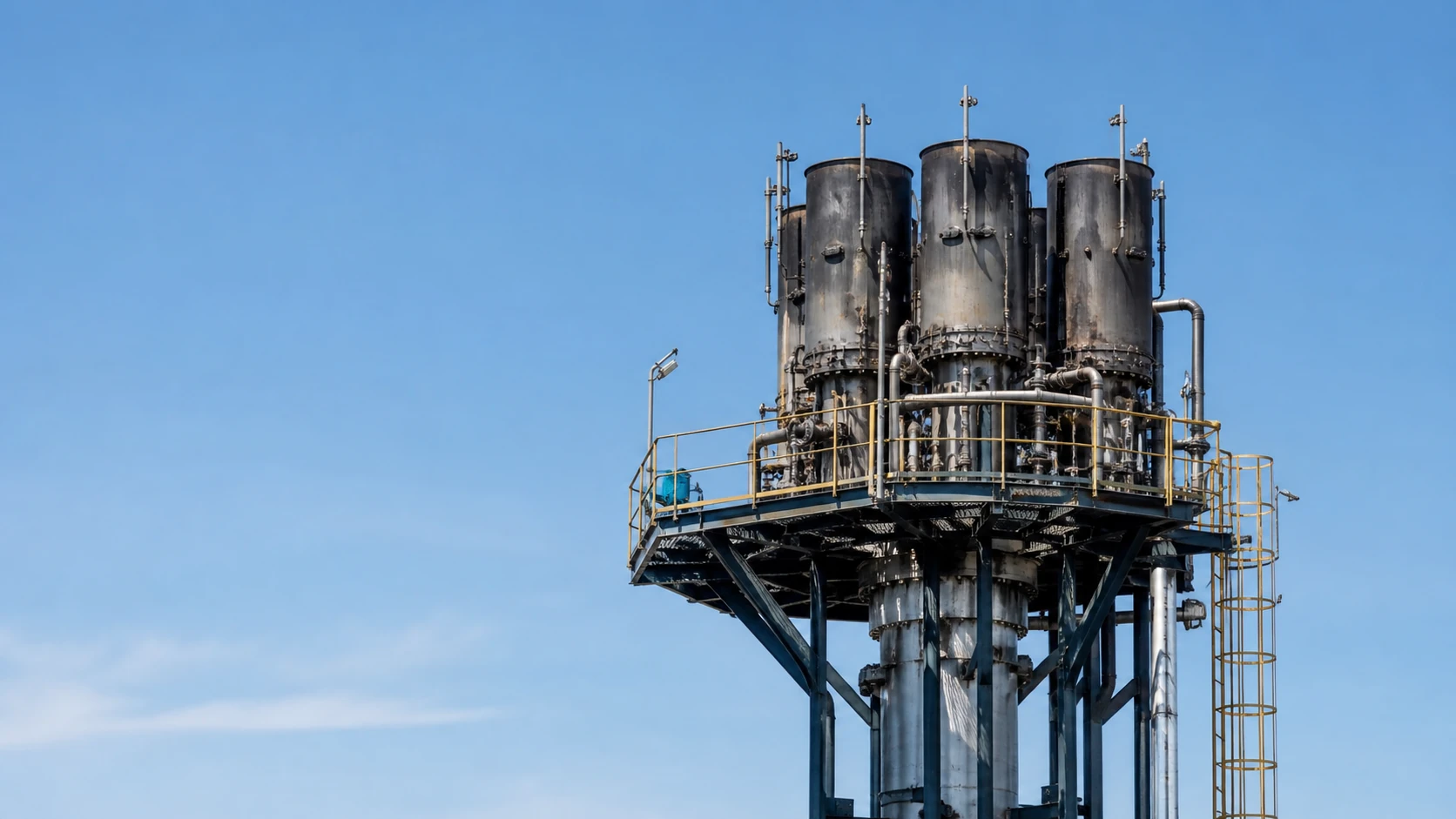

To establish the project design basis for “Flare Tips”, confirm “Flare gas, flame stability and tip outlet” and its inputs: Define gas composition and flow envelope, pressure/temperature, flame characteristics, smoke/noise limits and site radiation or permit constraints. Final values, supply limits and acceptance criteria are recorded in approved engineering documents; no generic capacity or catalogue guarantee is assumed.
From project definition to delivery
Engineering of Flare Tips concentrates on credible relief and blowdown loads, liquid disengagement, radiation, dispersion, noise, smokeless capacity, sealing, ignition reliability and safe plot-plan separation. The selected configuration is verified against normal, minimum, start-up, shutdown and credible upset cases, then checked for operability, maintainability, energy use, process safety and site interfaces before the design is frozen.
The design basis for Flare Tips is defined from service data, design conditions, and battery limits. For this equipment, Flare gas, flame stability and tip outlet and Backpressure and site location must be completed in the datasheet and design documents; performance values and guarantees are set only after the project basis is approved.
Materials, corrosion allowance, sour-service requirements, piping classes, nozzle design, insulation, coating, supports and maintenance access are coordinated with the actual process conditions and project code hierarchy.
Control philosophy, alarms and trips, cause-and-effect logic, interlocks, start-up and shutdown sequences, safe depressurization and operator access are developed consistently from the P&IDs through functional testing.
Battery limits, tie-in points, structural loads, cabling, instrumentation, drains, vents, access routes, lifting envelopes and shipping constraints are controlled through coordinated models and interface drawings.
From project definition to delivery
Proposal quality depends on complete input data and an explicit acceptance basis. The following lists provide a practical starting point and are completed during technical clarification.
Technical Datasheet
The figures below belong to one steam-assisted flare-tip family. They are not a flare-system capacity guarantee or universal emission limit.
| Parameter | Published value | Reference basis | Applicability / limit |
|---|---|---|---|
| Published tip-size range | 12–120 in (305–3,050 mm) | Published size range for one steam-assisted flare-tip family. | Tip diameter alone does not determine system capacity; relief cases, gas properties, assist medium, radiation, noise, and backpressure govern. |
| Steam supply pressure | 50–250 psig (3.45–17.25 barg) | Published steam-pressure suitability for the cited family. | Confirm steam quality, temperature, pressure at the manifold, nozzle losses, and minimum continuous flow for the selected operating case. |
| Hydrocarbon destruction example | ≥98.5% | Published performance claim for the cited tip family. | Not a universal regulatory DRE or guarantee; the test method, compounds, flow, assist, and operating envelope must match. |
| High-stability pilot wind test | 150 mph (241 km/h) | Published test condition for the pilot supplied with the cited tip family. | A component test result; not the flare system site wind design basis or an all-weather operating guarantee. |
