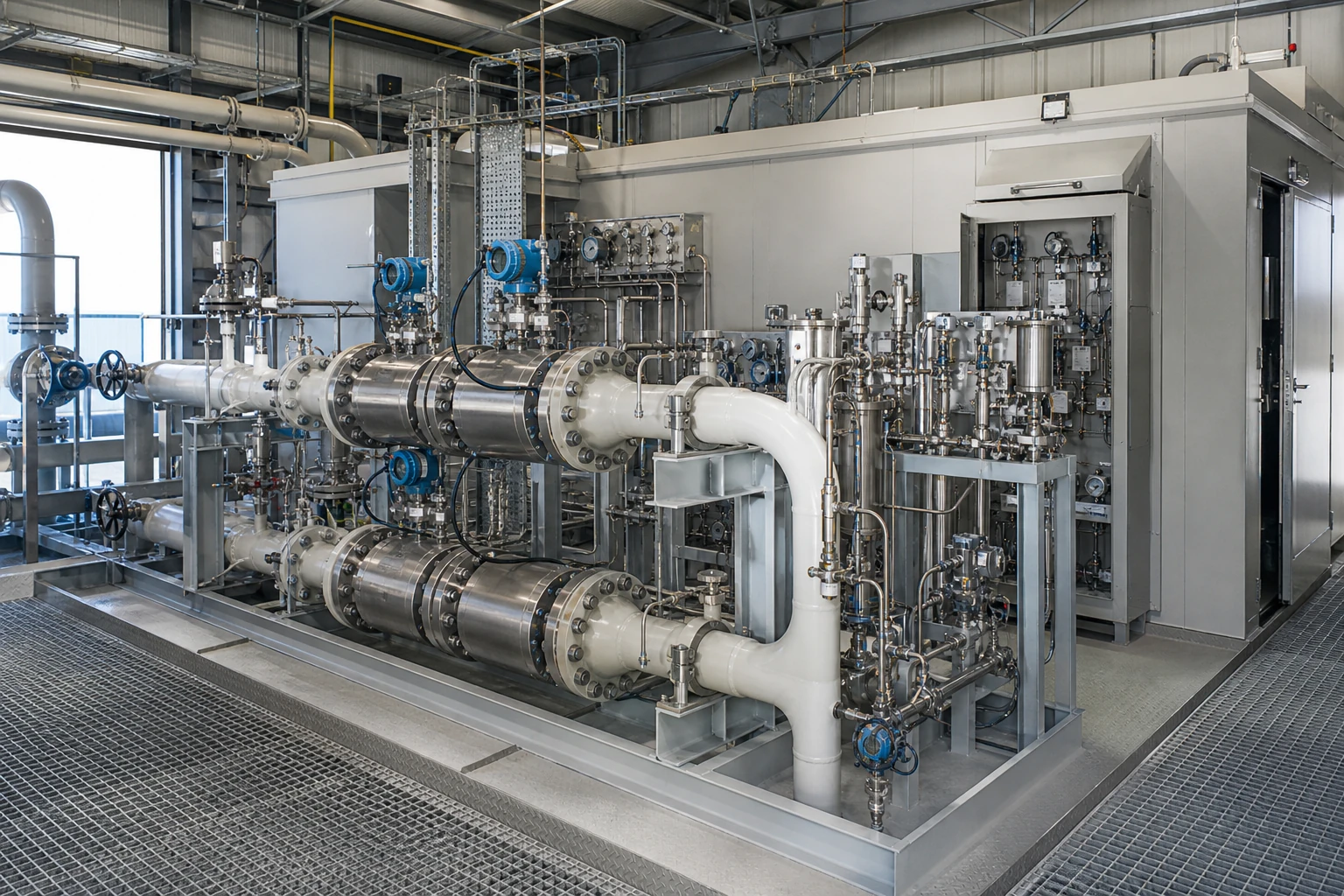

Packages · Metering & Analyzer
To establish the project design basis for “Oil Metering Skids”, confirm “Oil properties and metering range” and its inputs: Provide oil type and properties, flow range, density/viscosity, pressure/temperature, reference conditions and measurement needs. Final values, supply limits and acceptance criteria are recorded in approved engineering documents; no generic capacity or catalogue guarantee is assumed.
From project definition to delivery
Engineering of Oil Metering Skids concentrates on required measurement uncertainty, fluid properties, operating range, meter-run geometry, pressure loss, flow conditioning, calibration or proving, compensation and audit-trail integrity. The selected configuration is verified against normal, minimum, start-up, shutdown and credible upset cases, then checked for operability, maintainability, energy use, process safety and site interfaces before the design is frozen.
The design basis for Oil Metering Skids is defined from service data, design conditions, and battery limits. For this equipment, Oil properties and metering range and Fluid and operating cases must be completed in the datasheet and design documents; performance values and guarantees are set only after the project basis is approved.
Materials, corrosion allowance, sour-service requirements, piping classes, nozzle design, insulation, coating, supports and maintenance access are coordinated with the actual process conditions and project code hierarchy.
Control philosophy, alarms and trips, cause-and-effect logic, interlocks, start-up and shutdown sequences, safe depressurization and operator access are developed consistently from the P&IDs through functional testing.
Battery limits, tie-in points, structural loads, cabling, instrumentation, drains, vents, access routes, lifting envelopes and shipping constraints are controlled through coordinated models and interface drawings.
From project definition to delivery
Proposal quality depends on complete input data and an explicit acceptance basis. The following lists provide a practical starting point and are completed during technical clarification.
Technical Datasheet
The range below is for a high-capacity Coriolis meter family used as a possible primary element; it is not a complete skid rating or Delham custody-transfer guarantee.
| Meter model family | Published maximum liquid flow | Published accuracy / repeatability | Application limit |
|---|---|---|---|
| High-capacity Coriolis sizes 2–4 | 1,470–3,266 m³/h | ±0.10% of rate accuracy; ±0.05% of rate repeatability | Maximum flow differs by model; volumetric values assume liquid density 0.998 g/cm³. Confirm viscosity, density, pressure, operating envelope, meter proving and station uncertainty. |
Delham Engineering
Send the available process data, battery limits and expected document list for a technical proposal. The engineering team will identify missing information through a structured clarification register.
